The main steps in PV module production deal with the assembly of the module. Production does not end with assembly, however.
Before a solar PV module is packed and ready for shipping it must meet certain performance requirements and quality standards. This is where PV module machines for testing like sun simulators and high-potential testers come in.
In previous articles in our series on solar production manufacturing machines, we looked at the process of assembling a solar panel. In today’s article, we want to look at how to ensure your solar modules function properly and are of the best possible quality.
Both of these are essential if you want to build a good reputation that will help you grow your manufacturing business.
So what are a sun simulator and high-potential test? Are they absolutely necessary for your operation?
Sun Simulators
Test machines are specialized solar panel machines that are used to test photovoltaic solar modules. These PV module machines function like meters that help produce high-quality PV modules that meet industry standards and customer requirements.
A sun simulator replicates sunlight for testing the performance and reliability of a solar panel. It replicates the full spectrum of irradiance from sunlight and simulates the conditions of full sun exposure in different conditions, such as varying temperatures and levels of light.
Simulators can recreate solar irradiance in similar conditions to the standard solar machine test conditions (STC) for solar panels: module temperature of 25°C, irradiation level of 1200 W/m², and spectrum equivalent to AM1.5.
Different Types Of Sun Simulators
The most common type of sun simulator is the xenon arc lamp. Xenon arc lamps emit a broad spectrum of light similar to the light emitted by the sun.
Another type of sun simulator is the solar array simulator. Solar array simulators simulate a photovoltaic array and are used to test the performance of solar cell modules under various conditions.
Another type of sun simulator is the LED solar flasher, which is used to simulate different levels of light intensity.
The type of sun simulator used depends on the type of PV module being tested. Solar array simulators are typically used to test the performance of solar modules under various conditions. LED lamps test the performance of PV modules at different levels of light intensity.
Sun simulators can quickly and accurately detect any defects in a PV module. This machinery ensures defects are quickly identified and dealt with.
Why Should I Get My Solar Test Machines Calibrated?
Simulator testing procedures typically involve running tests to ensure that the sun simulator is able to accurately simulate the full spectrum of sunlight. This ensures it will give correct measurements of the performance of solar PV modules.
These tests check the accuracy of the sun simulator and the intensity of the light emitted.

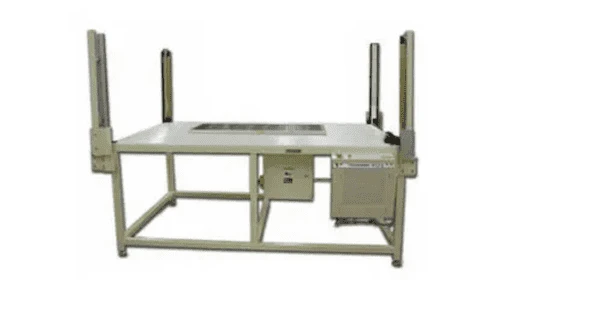

High-Potential Test Machines
A high-potential (Hi-Pot) test machine is used in solar panel manufacturing to perform electrical isolation tests on solar panels. These Hi-Pot PV module machines performs various types of tests on the cells, including dielectric resistance, continuity and efficiency tests, and insulation resistance.
1. Dielectric resistance is a measure of how well a material can resist the flow of electricity. Dielectric resistance tests on solar panels ensure they are properly insulated and can withstand the electric field they will be exposed to during operation.
2. Continuity and efficiency testing checks if a circuit is complete and that there are no breaks or open circuits in the circuit. For solar panels, continuity testing is performed to ensure all electrical connections within the panel are properly made. It ensures there are no breaks or open circuits that could affect the panel’s performance.
3. Insulation resistance measures how well a material resists the flow of electric current. For solar panels, an insulation resistance test is performed to ensure the insulation on the panel is intact and able to resist the flow of electric current. This is important because it helps to prevent electrical breakdowns and ensures the panel is safe to operate.
Together, these PV module machines help ensure you produce a more efficient and safer solar module.
Types Of High-Potential PV Module Test Machines
There are several different types of high-potential test PV module machines available on the market. The most common types are:
1. The open-air test machine is used to test the performance of solar modules without the need for a controlled environment.
2. The closed-loop test machine is used to test solar modules in an enclosed environment.
3. The automated test machine is used to automatically test solar modules.
4. The high-voltage test machine is used to test the potential voltage of a solar module.
High-Potential Test Machine Features
High-potential test machines come with a variety of features. Some of the most common include automatic calibration, adjustable voltage and current settings, remote control, and data logging.
Automatic calibration ensures that the test machine is always set up correctly and that the results are accurate. Adjustable voltage and current settings allow you to adjust the test conditions for different types of photovoltaic modules.
Remote control allows you to control the test machine from a distance, while data logging allows you to keep track of the test results.
Choosing The Right High-Potential Photovoltaic Test Machine
There are several factors to consider when selecting a test machine. These include the type of test machine, the size of the solar modules, the frequency of testing, and the budget.
It’s important to evaluate your testing needs before selecting a machine to ensure that it meets your requirements. Additionally, it’s beneficial to compare different test machines to ensure that you select the most suitable one for you.
Conclusion
Overall, test machines are an invaluable tool for a solar manufacturer looking to produce and test high-quality solar modules.
Testing and optimization are important parts of the solar panel making process. Solar panels need to meet and pass standardized tests for them to be sold in certain markets. It is also good business practice and ethics to manufacture good quality products.
Producing and selling defective or poorly performing solar modules or renewable energy cells gives a manufacturer a bad reputation. This almost certainly guarantees the enterprise will not grow and will likely fail within a few years of operation.
